Product Details:
|
| Size: | 63mm | Mount: | Radial Direction |
|---|---|---|---|
| Pressure Range: | 1.6 MPa Or Customized | Ring: | Bayonet Type |
| Case Material: | SUS 316L | Window: | PC |
| Bourton Tube: | SUS 316 | Movement: | SUS 304 |
| Liquid: | Glycerin, Silicone Oil | Color: | White |
| High Light: | Radial direction chemical pressure gauge,316SS wetted chemical pressure gauge,1.6 MPa 63mm pressure gauge |
||

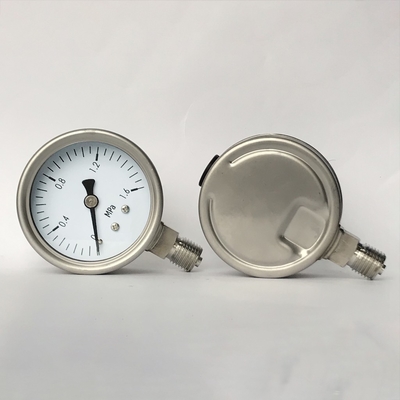

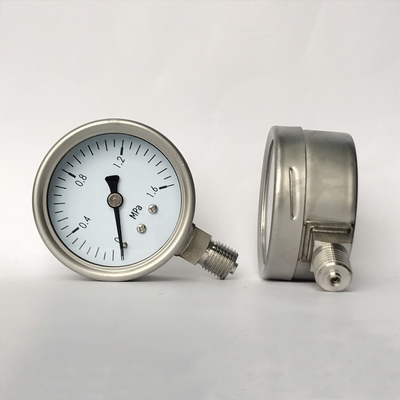

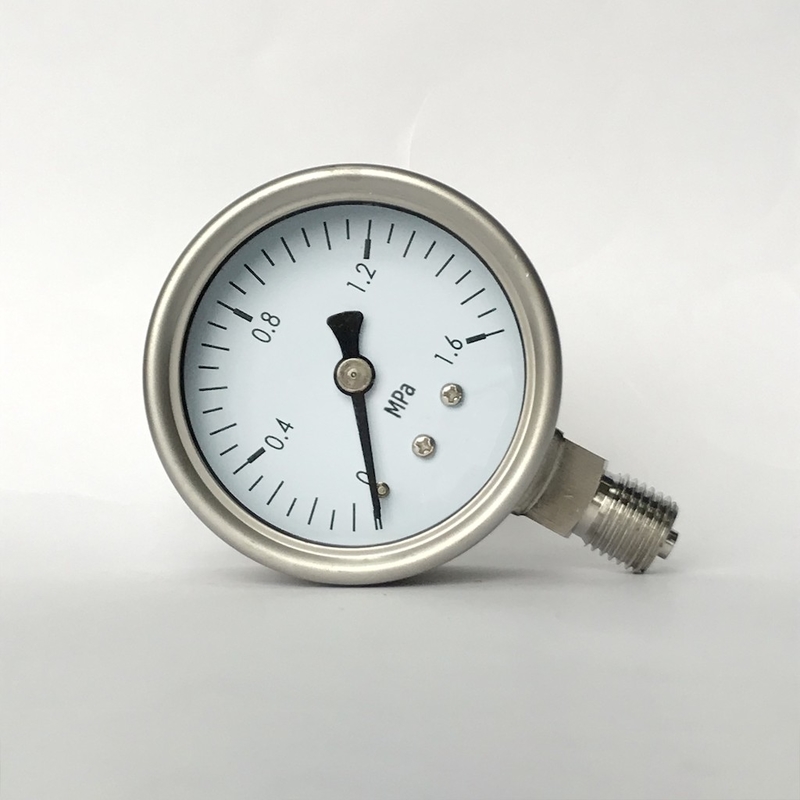

63mm 1.6 MPa Chemical Applications All Stainless Steel Pressure Gauge
Description
Type M02 gauges feature 316 SS wetted parts and 304 SS case and bayonet ring, a laminated safety glass window and can be liquid-filled in the field. These gauges are ideal for process, chemical applications, oil exploration and produc- tion, power generation and pollution control equipment.
Applications
For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
Oil and gas industry, chemical and petrochemical industry, pumbling and HVAC, hydraulics and pneumatics
Machine building and general plant construction
Special features
Excellent load cycle stability and shock resistance
Design per EN 837-1
Completely from stainless steel
Scale ranges up to 0 ... 1600 bar
|
Design |
EN 837-1 |
|
Nominal size |
63mm |
|
Accuracy |
2.5 |
| Pressure range | 1.6 MPa (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
| Medium temperature |
Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F] Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F] Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F] |
|
Ambiet temperature |
Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F] Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F] Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F] |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Stainless steel, SUS 304, SUS 316 |
|
Pressure element |
SS 316L, H-type bourdon tube |
| Movement | SS 304 |
| Dial | Aluminium, white, with pointer stop pin Black lettering |
| Pointer | Aluminium |
| Case | SS 304 |
| Ring | Necking-down, stainless steel |
| Window | PC, glass, safety glass |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Thread | G, BSP, PT, BSPT, NPT |
| Options | Other process connection Surface mounting flange Mounting bracket |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
